Precision Tube Bending for High-Performance Applications

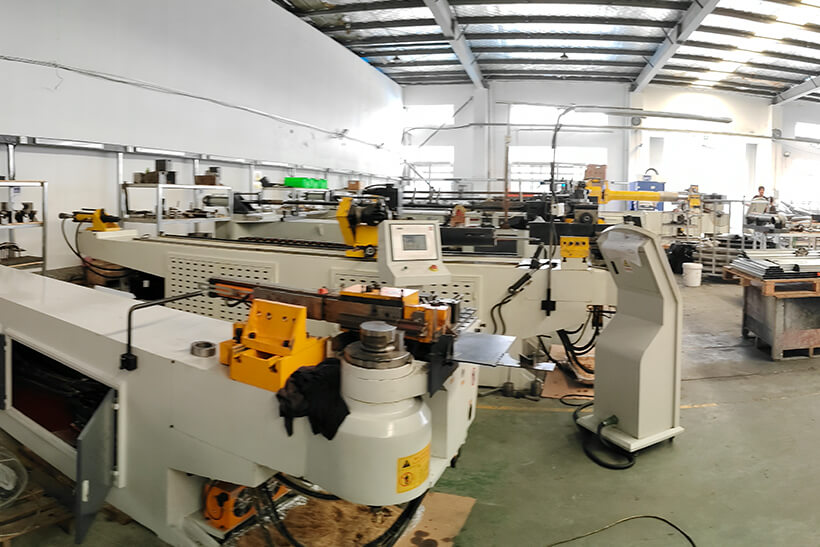

Our Mandrel Bending Service delivers high-precision tube forming solutions for a wide range of industries. Using advanced mandrel bending technology, we ensure smooth, wrinkle-free bends while maintaining consistent inner diameter and structural integrity.
Capabilities & Specifications
| Diameter(inch) | Diameter(mm) | Wallthickness(mm) | Bend angle(°) | CLR(D) | Leg length |
|---|---|---|---|---|---|
| 1″ | 25.4mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 1-1/4″ | 32mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 1-1/2“ | 38.1mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 1-5/8“ | 42mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 1-3/4“ | 45mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 1-7/8” | 48mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 2“ | 50.8mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 2-1/4” | 57mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 2-1/2“ | 63.5mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 2-3/4” | 69.85mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 3“ | 76.2mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 3-1/2” | 88.9mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 4“ | 101.4mm | 1-5mm | 0-180° | min 1.0D | 0-2000mm |
| 4-1/2” | 114.3mm | 1-5mm | 0-90° | min 1.5D | 0-2000mm |
| 5“ | 127mm | 1-5mm | 0-90° | min 1.5D | 0-2000mm |
| 6” | 152.4mm | 1-5mm | 0-90° | min 1.5D | 0-2000mm |
| 7“ | 177.8mm | coming soon | |||
| 8” | 203.2mm | coming soon |

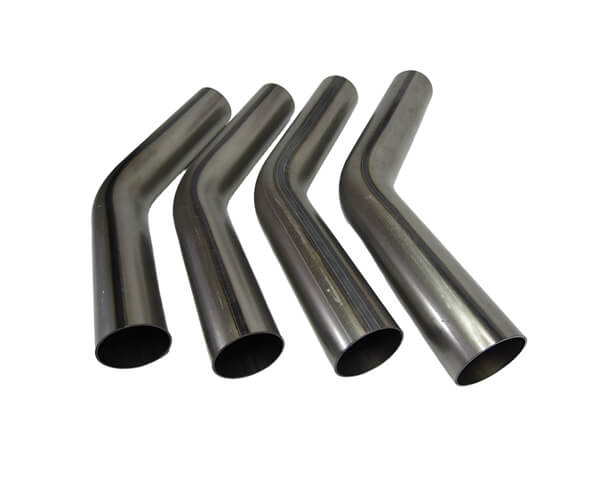

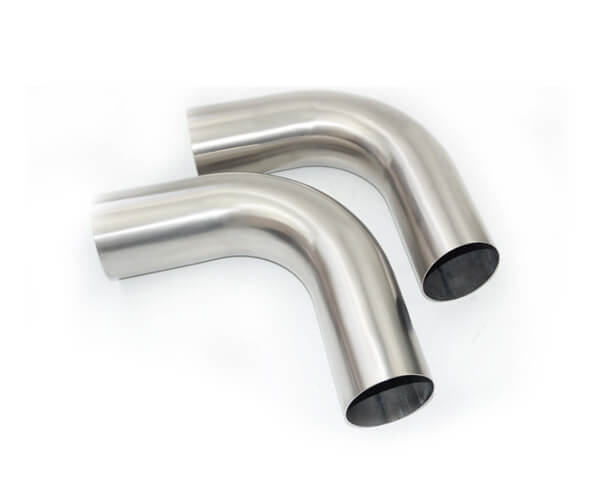

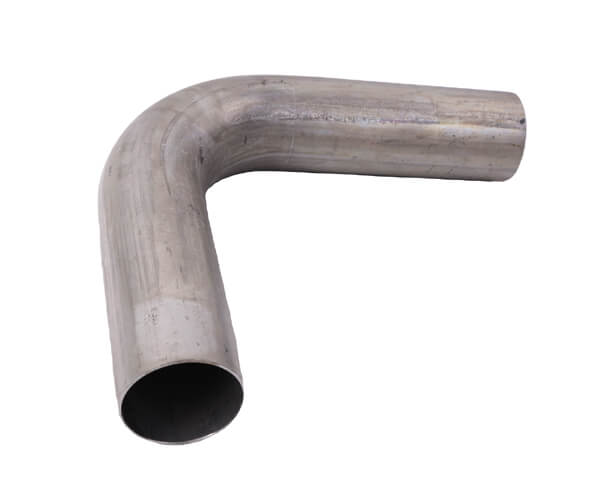

Multi materials available for pipe mandrel bending process
What products we do by mandrel bending?
Our mandrel bending parts are widely used in:
- Truck exhaust systems
- Automotive exhaust pipes
- Agricultural machinery components
- Road safety products (guardrails, posts, structural parts)
